Belden 633938 RG6 Plenum CATV MATV Duofoil Braid 1000ft Coaxial Cable

Belden 633938 RG6 Plenum CATV MATV Coax Cable: Superior Performance

The Belden 633938 RG6 Plenum CATV MATV Duofoil + AL Braid 1000ft Coax Cable is a high-performance solution for indoor surveillance, cable TV (CATV), and master antenna TV (MATV) applications. This CMP and CATVP-rated cable features a solid bare copper conductor, foam FEP core, and Belden's proprietary Duofoil® shielding combined with a 90% aluminum braid for exceptional signal integrity. The low-smoke PVC-LS jacket ensures compliance with plenum space requirements, making it ideal for commercial and residential installations where fire safety is paramount.

Product Specifications:

- RG Type: 6
- Conductor: 18 AWG solid bare copper, 0.040 inch nominal diameter
- Insulation: Foam FEP (Fluorinated Ethylene Propylene), 0.170-inch nominal diameter, white color
- Outer Shield: Duofoil® (100% coverage) + 90% aluminum braid
- Outer Jacket: Low-smoke PVC, 0.233 inch nominal diameter
- Overall Cable Diameter: 0.233 inches (5.92 mm)
- Impedance: 75 Ohm
- Velocity of Propagation: 83%
- UL Voltage Rating: 300 V (CMP)
- Temperature Rating: -20°C to +75°C
- Minimum Bend Radius: 2.3 inches (58 mm)
- Maximum Pull Tension: 104 lbs (47.2 kg)
- Weight: 28 lbs per 1000ft

Features and Applications:

Ideal for CATV and MATV systems in commercial and residential buildings
- CMP and CATVP rated for use in plenum spaces
- High-performance Duofoil® + aluminum braid shielding for superior signal quality
- Low-smoke PVC-LS jacket for improved fire safety
- Excellent attenuation characteristics across a wide frequency range (1 MHz to 1000 MHz)
- Suitable for indoor surveillance systems
- Compatible with standard RG6 connectors and installation tools

Construction and Performance:

The Belden 633938 cable is engineered for optimal performance in demanding indoor environments. The solid bare copper conductor ensures excellent signal transmission, while the foam FEP insulation provides superior dielectric properties. The combination of Belden's Duofoil® technology and 90% aluminum braid offers exceptional shielding against electromagnetic interference (EMI) and radio frequency interference (RFI).

The low-smoke PVC-LS jacket meets stringent fire safety standards, including NFPA 262, making it suitable for installation in air plenums and other critical areas. With its CMP and CATVP ratings, this cable complies with both the National Electrical Code (NEC) and Canadian Electrical Code (CEC) requirements for plenum installations.

Electrical Characteristics:

- Nominal Conductor DCR: 6.4 Ohm/1000ft
- Nominal Outer Shield DCR: 3.5 Ohm/1000ft (11 Ohm/km)
- Nominal Capacitance Conductor-to-Shield: 16.3 pF/ft (53.5 pF/m)

Attenuation Performance (dB/100ft):

- 1 MHz: 0.24 dB
- 50 MHz: 1.50 dB
- 200 MHz: 3.10 dB
- 700 MHz: 6.00 dB
- 1000 MHz: 7.30 dB

Compliance and Sustainability:

The Belden 633938 cable is designed with environmental responsibility in mind. It complies with various international standards and directives, including:
- RoHS 2 (EU Directive 2011/65/EU and amendment 2015/863/EU)
- REACH (EU Regulation)
- WEEE (EU Directive 2012/19/EU)
- China RoHS II (GB/T 26572-2011)
- California Proposition 65

Belden offers this cable with Product Lens certification and provides an Environmental Product Declaration (EPD) upon request, demonstrating their commitment to transparency and sustainable manufacturing practices.

Available Variants:

The Belden 633938 RG6 Plenum CATV MATV cable is offered in various colors and put-up options to suit different installation requirements:

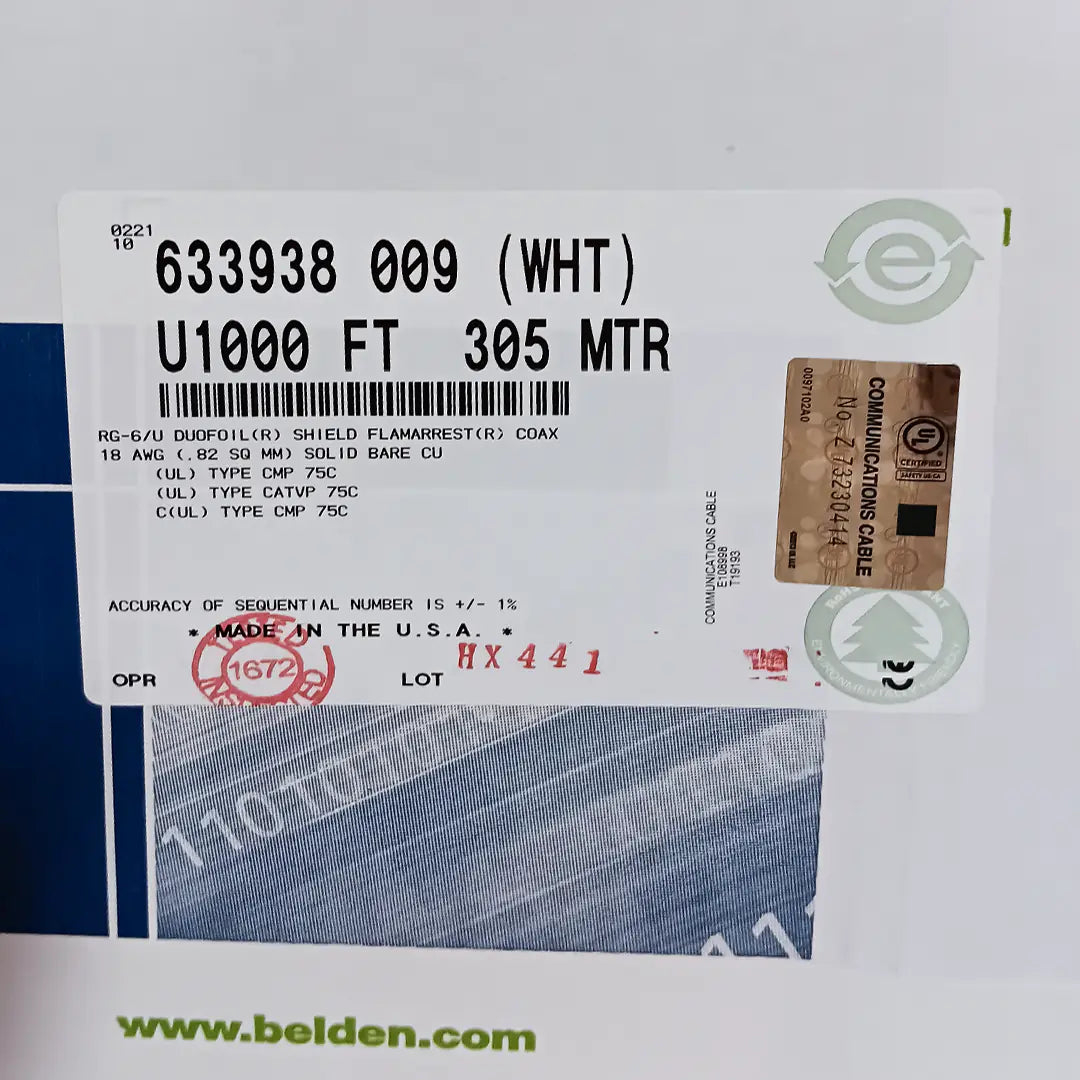

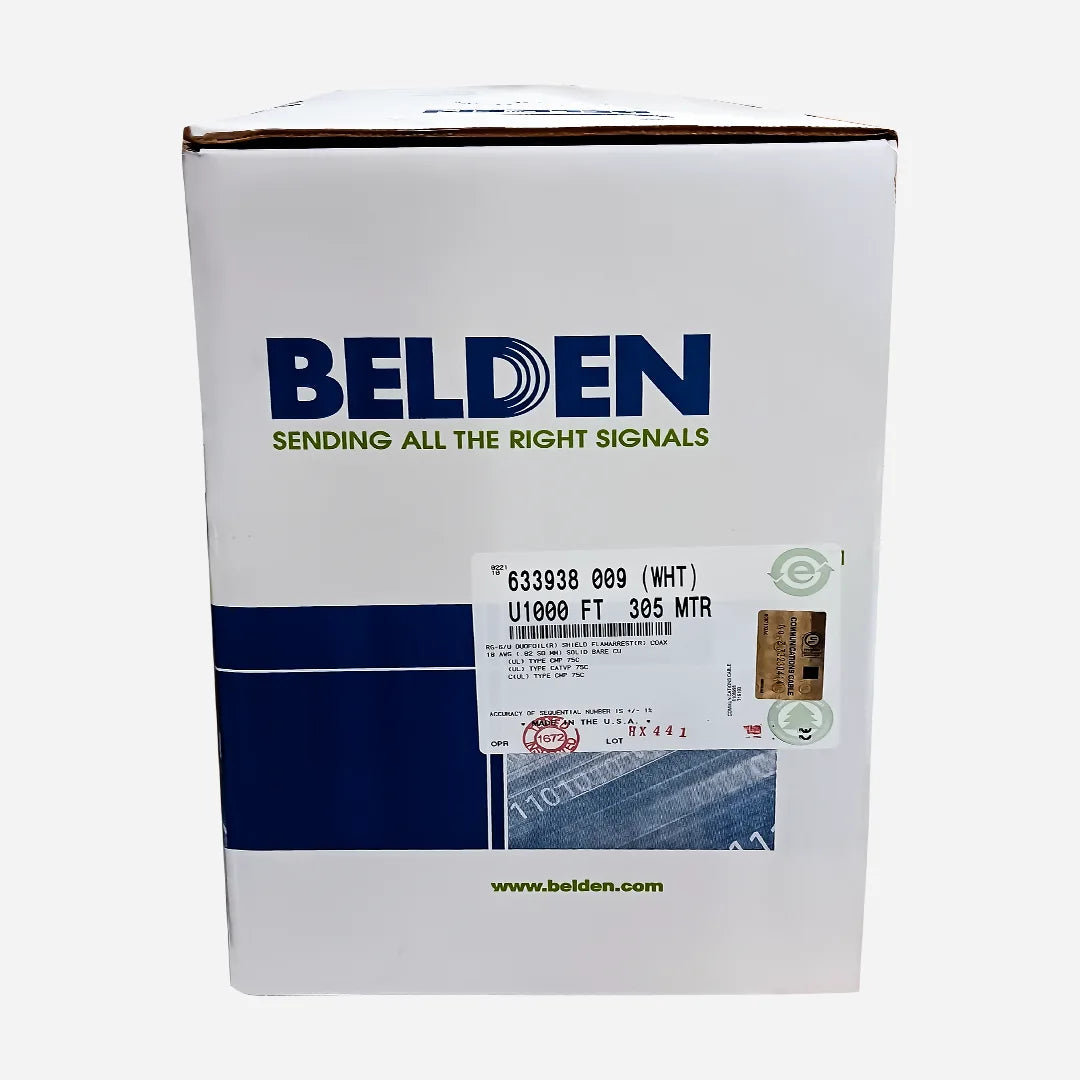

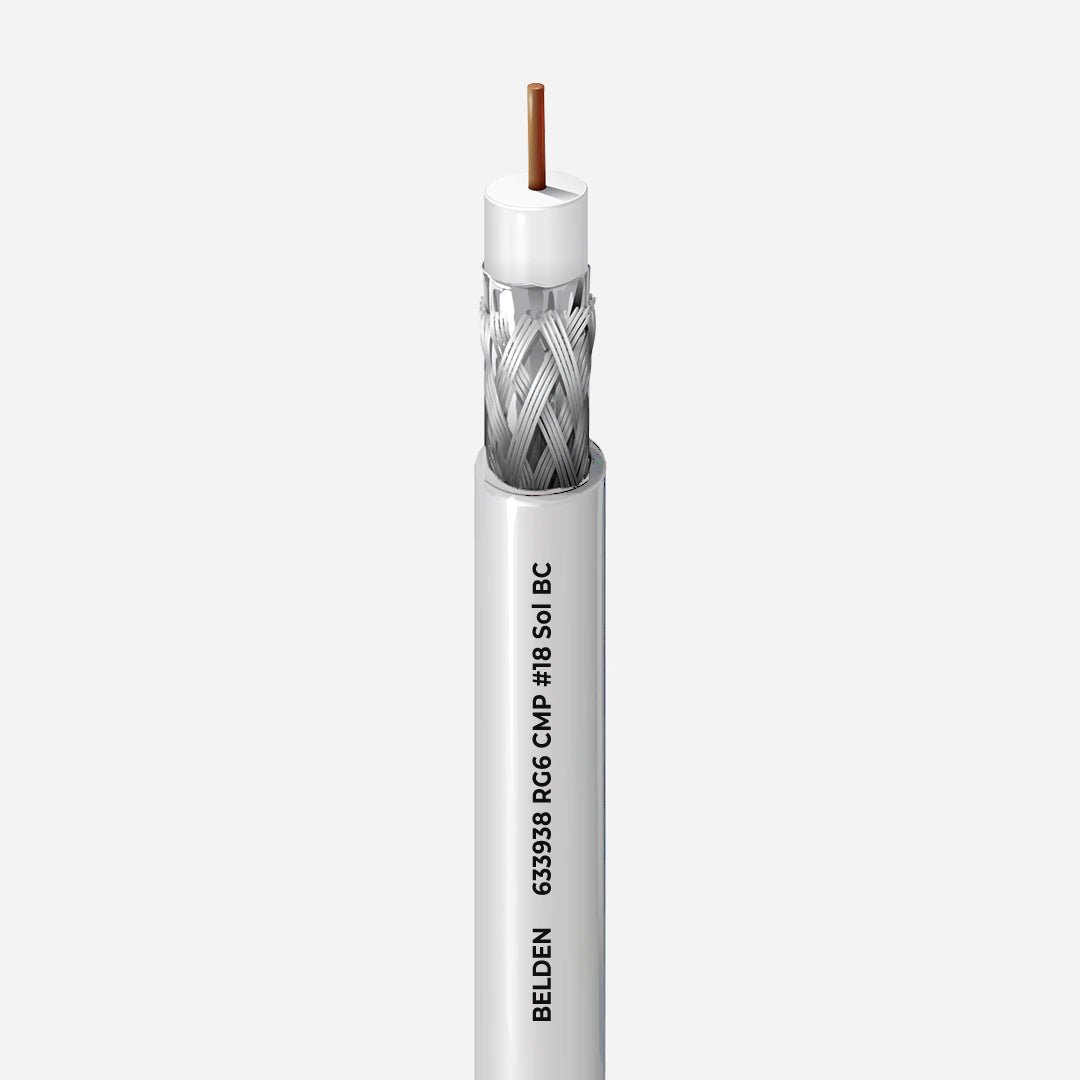

- White: 1000 ft UnReel (633938 009U1000)

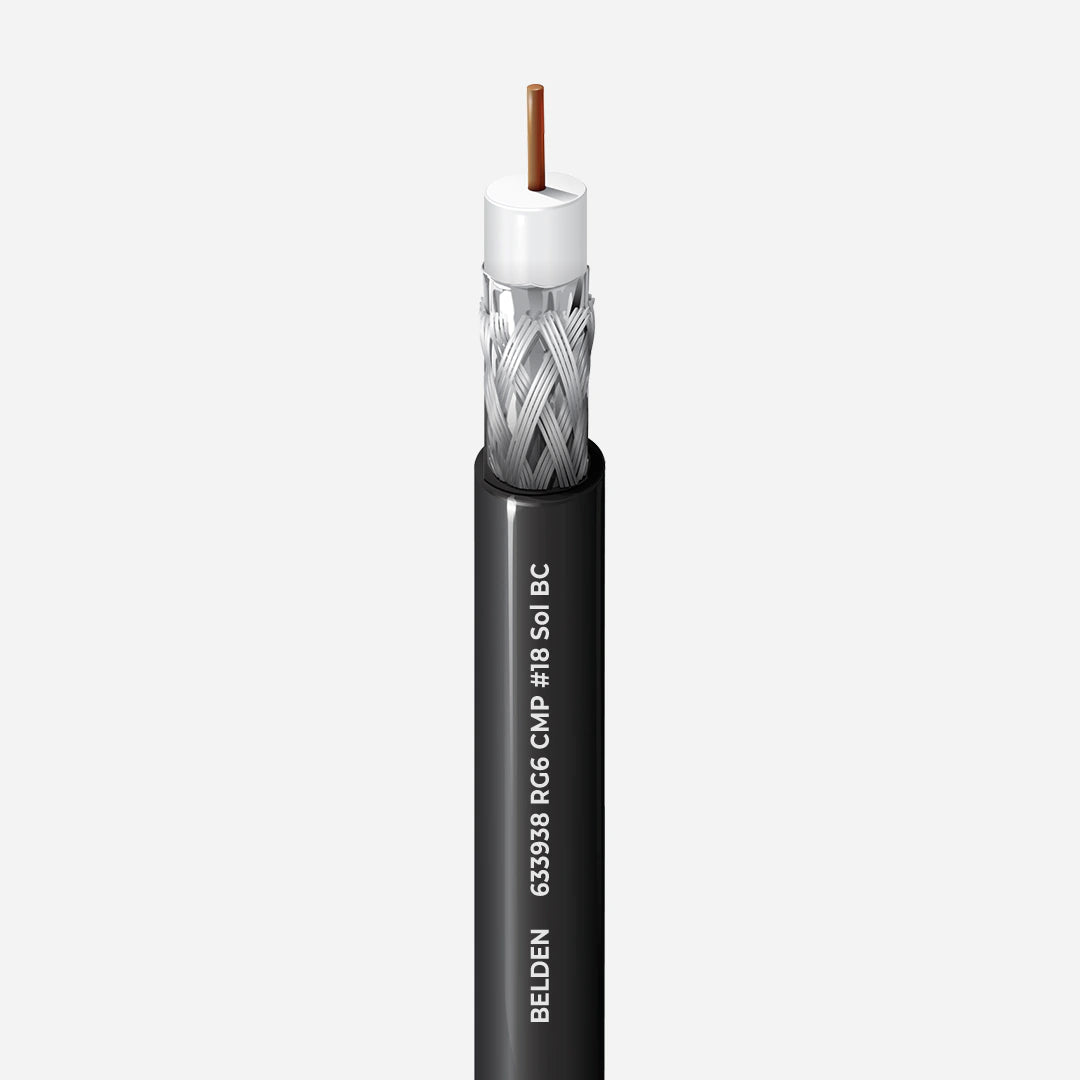

- Black: 1000 ft UnReel (633938 010U1000)

Choose the Belden 633938 RG6 Plenum CATV MATV Duofoil + AL Braid Coax Cable for your next indoor video distribution or surveillance project, and experience the perfect balance of performance, safety, and reliability that only Belden can provide.
