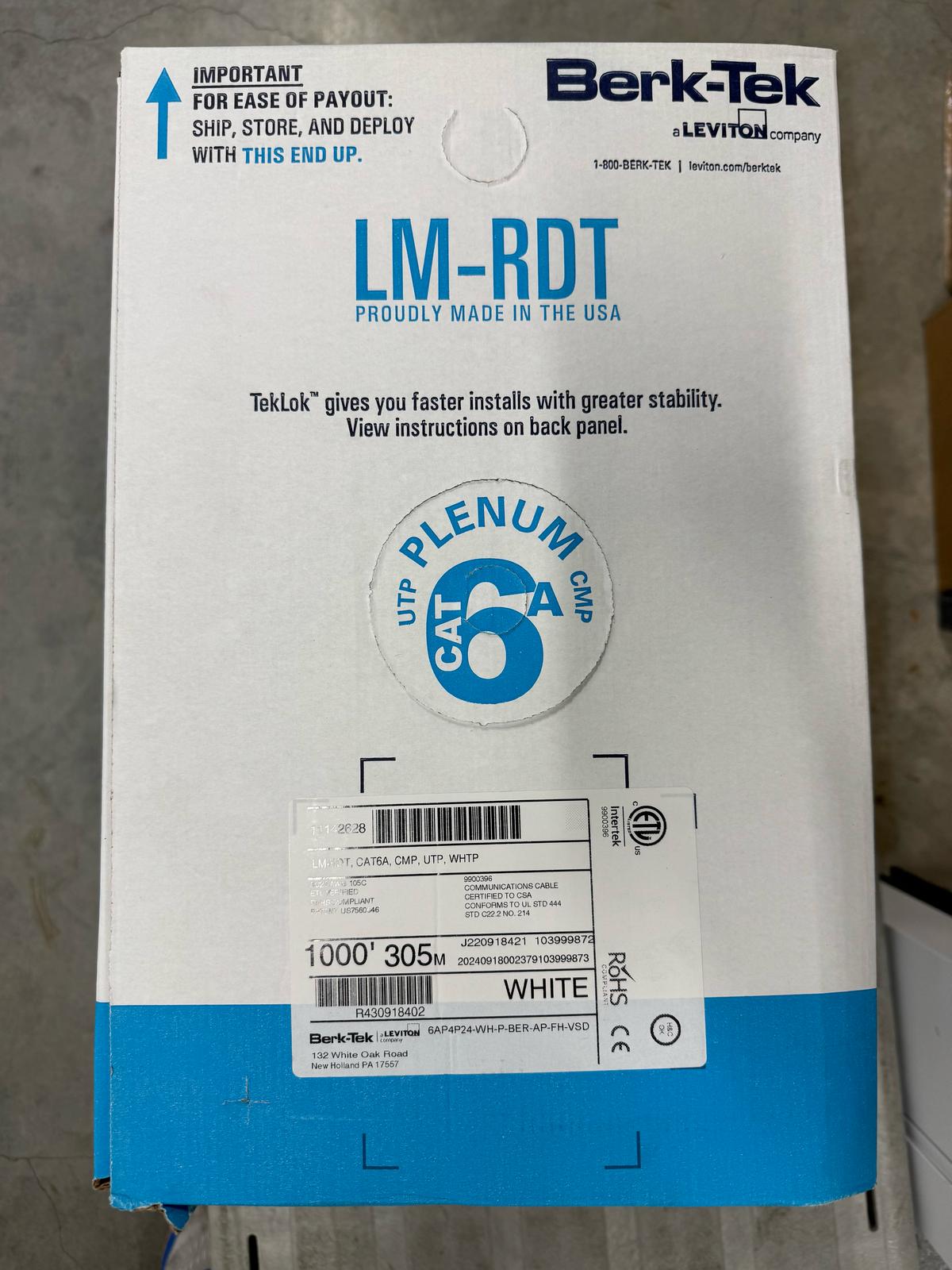

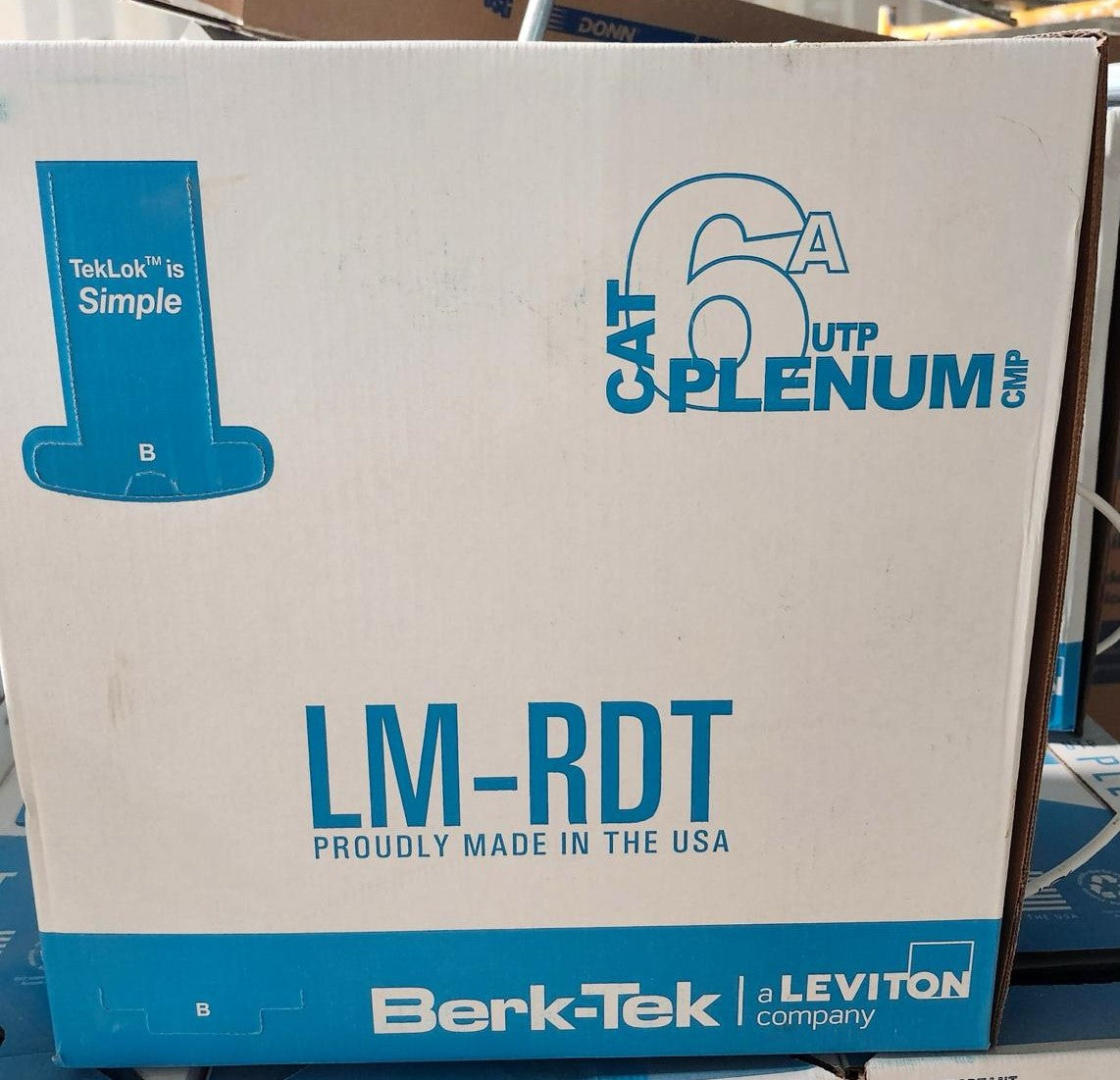

BERK-TEK | 11140628 CAT6A Plenum White 1000ft 750MHz REDUCED DIAMETER

RDT cable features a reduced diameter of 0.230" (vs. 0.275" average Cat 6A cable), creating better flexibility, optimized cable management, and improved tray-fill ratio for high-density installations. It offers excellent signal isolation, with PoE and Alien Crosstalk performance that exceeds standards, making it an excellent choice for 802.11ac wireless, HD video and IP security. The cable’s insulated metallic isolation wrap provides superior heat management and noise-cancelling performance, preventing electrical energy from running along the shield and eliminating the need for grounding. The electrical performance is independently verified by ETL (Intertek) as part of the LM Verified Performance program.

Upgrade your network with Berk-Tek LANmark-10G CAT6A Plenum Cable (Part# 11142628), engineered for superior performance and 10-Gigabit speeds. This 1000ft (305m) UTP bulk cable is perfect for high-speed data transmission in commercial and residential structured cabling applications.

Product Specifications:

✔ Brand: Berk-Tek (Leviton Company)
✔ Part Number: 11142628
✔ Category: CAT6A (Augmented Category 6)
✔ Jacket Type: CMP Plenum Rated – Ideal for air-handling spaces
✔ Cable Type: Unshielded Twisted Pair (UTP)
✔ Conductor: 23 AWG Solid Bare Copper
✔ Color: White
✔ Length: 1000ft (305m) Pull Box
✔ Bandwidth: 750 MHz
✔ Performance: 10-Gigabit Ethernet, PoE+, and HD video applications
✔ Certifications: UL Listed, RoHS Compliant, ETL Verified

Key Features:

✅ 750MHz High Bandwidth – Perfect for 10-Gigabit speeds with minimal interference.
✅ Plenum Rated (CMP) – Fire-resistant jacket for use in air-handling spaces.
✅ Certified for Safety & Performance – UL Listed, ETL Verified, and RoHS Compliant.
✅ Reliable Solid Copper Conductors – Superior conductivity for stable connections.
✅ Supports PoE, PoE+, and PoE++ – Ideal for high-power network devices.
✅ 10-Gigabit Ready – Future-proof your network with ultra-fast data speeds.
✅ Easy Installation – Comes in a tangle-free pull box for hassle-free wiring.

Why Choose Berk-Tek CAT6A Plenum Cable?

🔹 Manufactured by Leviton, a top-tier name in networking.
🔹 Exceeds TIA/EIA Standards for CAT6A performance.
🔹 Supports Power Over Ethernet (PoE) Devices, including cameras, access points, and VoIP phones.
🔹 CMP Jacket Complies with Fire Safety Codes – Ideal for commercial buildings, offices, and data centers.

Ideal Applications:

✔ Enterprise & Home Networking
✔ Data Centers & Server Rooms
✔ VoIP Phone Systems
✔ High-Speed Video Streaming & Surveillance
✔ Power Over Ethernet (PoE) Devices
✔ Medical & Educational Institutions
