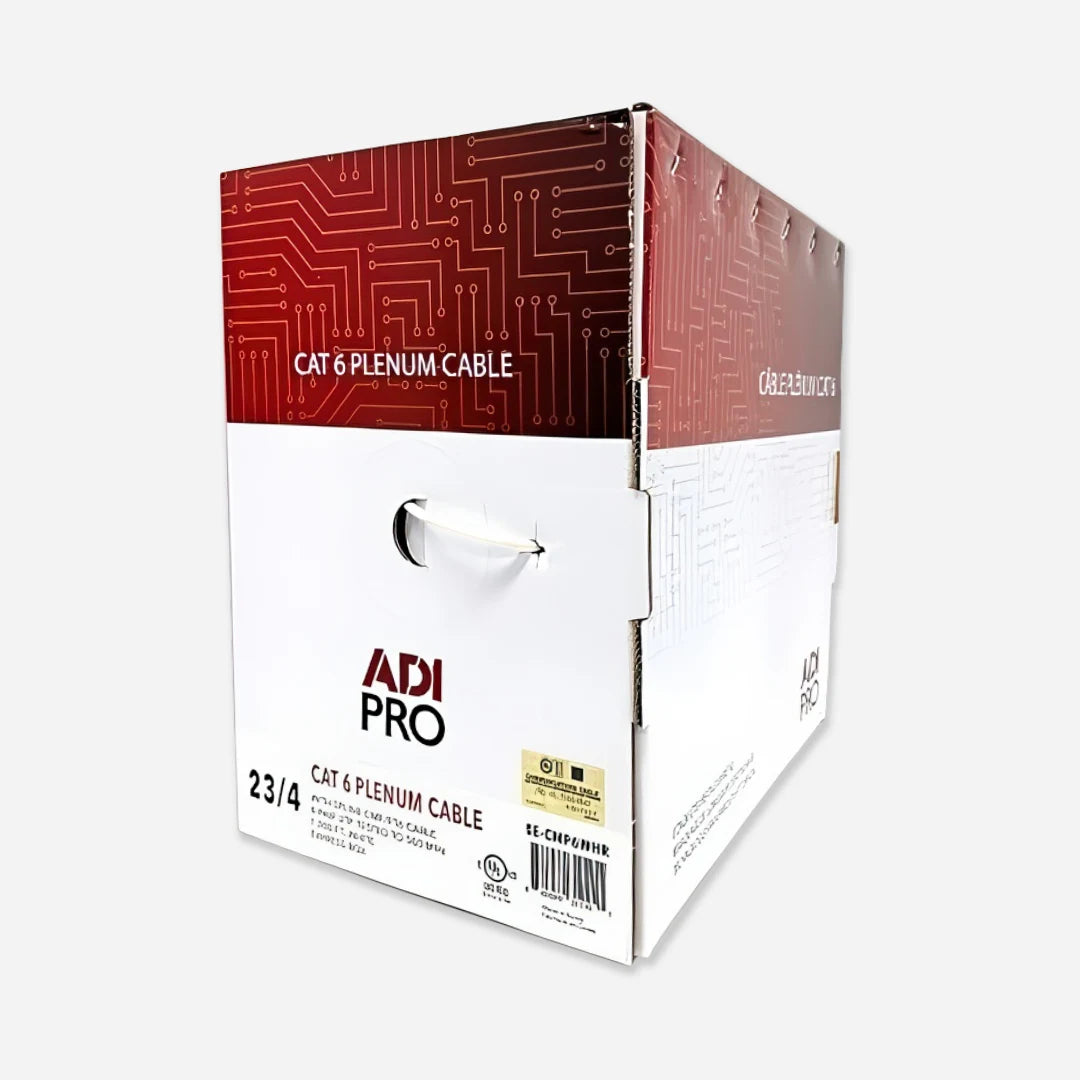

ADI Pro Cat6 Plenum Cable 23/4 CMP/FT6 Express Box - High-Performance Network Wiring
Product Description
The Cat6 Plenum ADI Ethernet Cable delivers exceptional performance for demanding network installations in commercial and residential environments. This 23 AWG solid copper Category 6 cable is specifically engineered for plenum spaces, meeting strict fire safety standards while providing reliable high-speed data transmission. Designed for versatility and durability, this CMP/FT6-rated cable supports all modern networking applications up to 10 Gigabit Ethernet over limited distances. The convenient express box packaging ensures smooth deployment with minimal tangling or kinking during installation, making it the professional's choice for structured cabling projects where performance and compliance cannot be compromised.
Product Specifications
- Cable Type: Category 6 (CAT6) Plenum Rated
- Part Numbers: 0E-CMP6WHR (White), 0E-CMP6BLR (Blue), 0E-CMP6YWR (Yellow), 0E-CMP6BKR (Black)
- Conductor: 23 AWG Solid Bare Annealed Copper
- Insulation: FEP (Fluorinated Ethylene Propylene)
- Jacket: Plenum PVC (Low-Smoke, Flame-Retardant and RoHS compliant)
- Nominal Cable Diameter: 0.232 inches
- Net Weight: 32.60 lbs/1000ft
- Minimum Bend Radius: 1.0 inch
- Maximum Pulling Force: 25 lbs
- Operating Voltage: 300V
-
Temperature Rating:
- Installation: +32°F to +140°F
- Storage & Operation: -4°F to +167°F
Electrical Performance
- Maximum Capacitance: 5.6 nF/100m @ 1 kHz
- Maximum DC Resistance: 9.38 Ω/100m @ 68°F
- Dielectric Strength: 2.5 DC-kV, 2s
- Characteristic Impedance: 100 ± 15 Ω (1-100 MHz)
- Bandwidth: Sweep tested to 500 MHz
- Return Loss: 20.1 dB/100m (min) @ 100 MHz
- Propagation Delay: 538 ns/100m (max) @ 100 MHz
- Delay Skew: 45 ns/100m (max)
Features & Benefits
- Plenum Rated (CMP/FT6): Suitable for installation in air handling spaces
- RoHS Compliant: Meets environmental standards for hazardous substances
- Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green pairs for easy identification
- Integrated Rip Cord: Facilitates jacket removal for termination
- FR Spline: Maintains pair separation for optimal performance

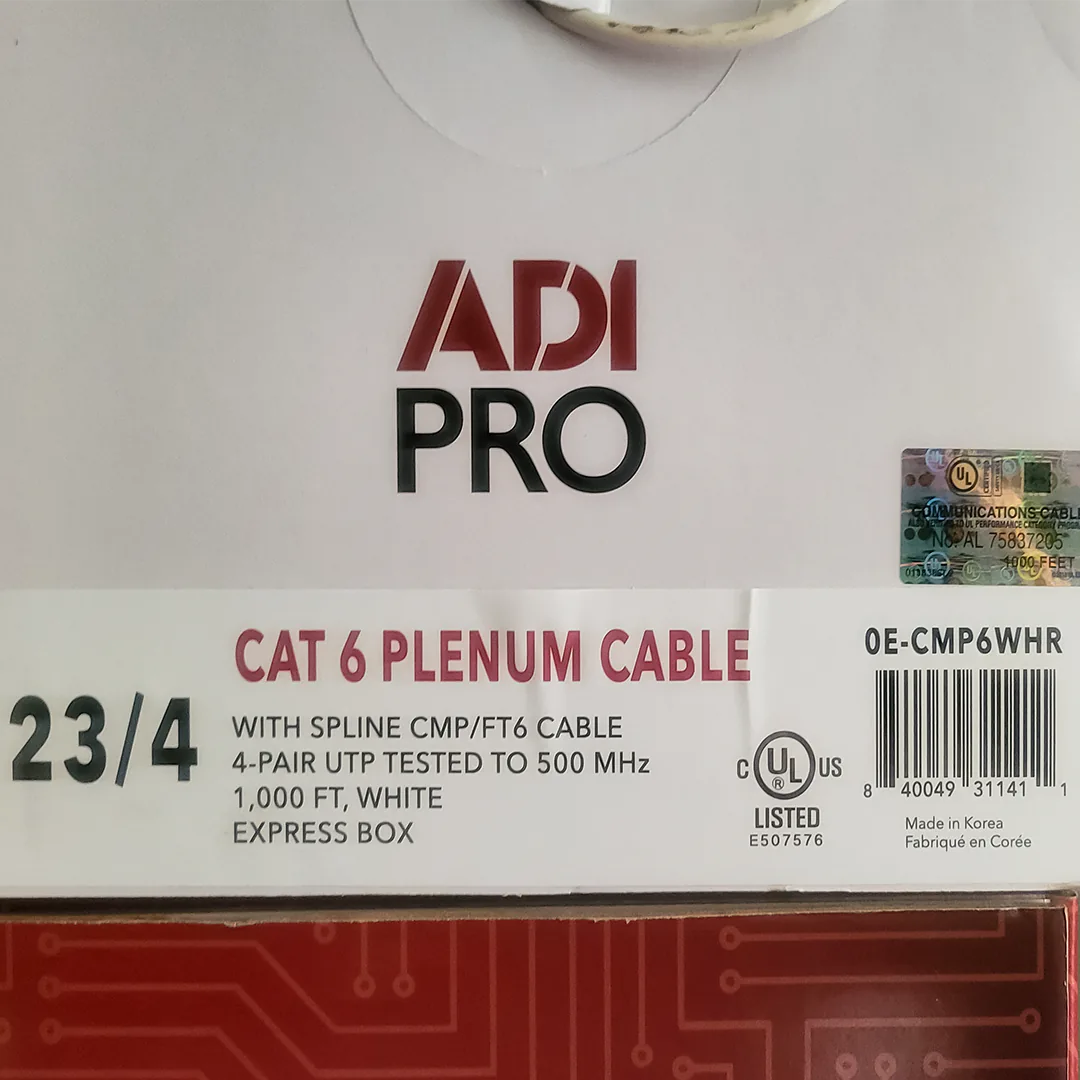

- Express Box Packaging: Enables smooth pulls and reduces installation time
- Multiple Color Options: Available in white, blue, yellow, and black to match installation requirements
- Comprehensive Verification: UL verified to TIA-568 standards
Applications
- 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet networks
- ANSI/TIA/EIA 854: 1000BASE-TX
- High-speed data transmission (155Mb/s, 1.2 Gb/s ATM)
- Power over Ethernet (PoE) installations
- Digital video systems
- Building automation systems (ANSI/TIA-862)
- Commercial and institutional network infrastructure
Construction Details
The ADI Pro Cat6 cable features a precision-engineered design with four twisted pairs of 23 AWG solid bare copper conductors, each insulated with FEP. The pairs are separated by an FR spline that reduces crosstalk and maintains the cable's electrical properties. A longitudinal rip cord is included under the low-smoke, flame-retardant plenum jacket for easier termination. The cable's construction ensures compliance with strict fire safety regulations while maintaining superior transmission characteristics across the full frequency range.
Compliance Standards
- ANSI/TIA-568
- IEC 11801 Ed.2.0 (Class E)
- ICEA S-102-700 (Category 6)
- NEC/CEC Type CMP (NFPA 262) for Plenum
- UL 444
- RoHS Compliant Directive 2011/65/EU
- ISO9001:2008, ISO14001:2004, OHSAS 18001
This premium Cat6 plenum cable combines superior performance with safety compliance, making it the ideal choice for professional network installations where reliability and code adherence are essential.
Additional Info & Specs
Color | White |
---|---|
Product Type | Ethernet networking cable |
Condition | New |
Brand | ADI |
Package | Reelex |
Category | 6 |
Spaces | Plenum |
Gauge | 23 AWG |
Jacket | Plenum-Rated |
Insulation Material | FEP |
Frequency | 500 MHz |
No. of Pairs | 4 Twisted |
Shielding | Unshielded UTP |
Conductor | Solid |
Conductor Material | Bare Copper |
Certification Standards | UL Certified, RoHS, ETL, TIA Compliant |
