Cat6 Plenum Wavenet No Spline UTP 23AWG 1000ft Yellow Ethernet Cable

Cat6 Plenum Wavenet No Spline Cable - 23AWG 4PR Plenum Rated Network Cable

Experience superior network performance with our premium CAT6 550MHz UTP Plenum (CMP) cable. This high-performance 23 AWG unshielded twisted pair cable delivers exceptional bandwidth capabilities up to 550MHz, exceeding standard CAT6 requirements. Designed for commercial installations where fire codes mandate plenum-rated materials, this FT6-rated cable ensures both safety compliance and reliable data transmission. The no-spline design offers easier termination and installation while maintaining excellent crosstalk prevention and signal integrity across even the most demanding network environments.

Product Specifications

• Cable Type: Category 6 UTP (Unshielded Twisted Pair)
• Bandwidth: 550MHz (exceeds standard CAT6 requirements)
• Fire Rating: CMP (Plenum), FT6
• Conductor: 23 AWG solid bare copper
• Configuration: 4-pair
• Design: No spline construction
• Compliance: C(UL) listed FT6 CMP, C(UL)US Verified to TIA-568-C.2, RoHS Compliant

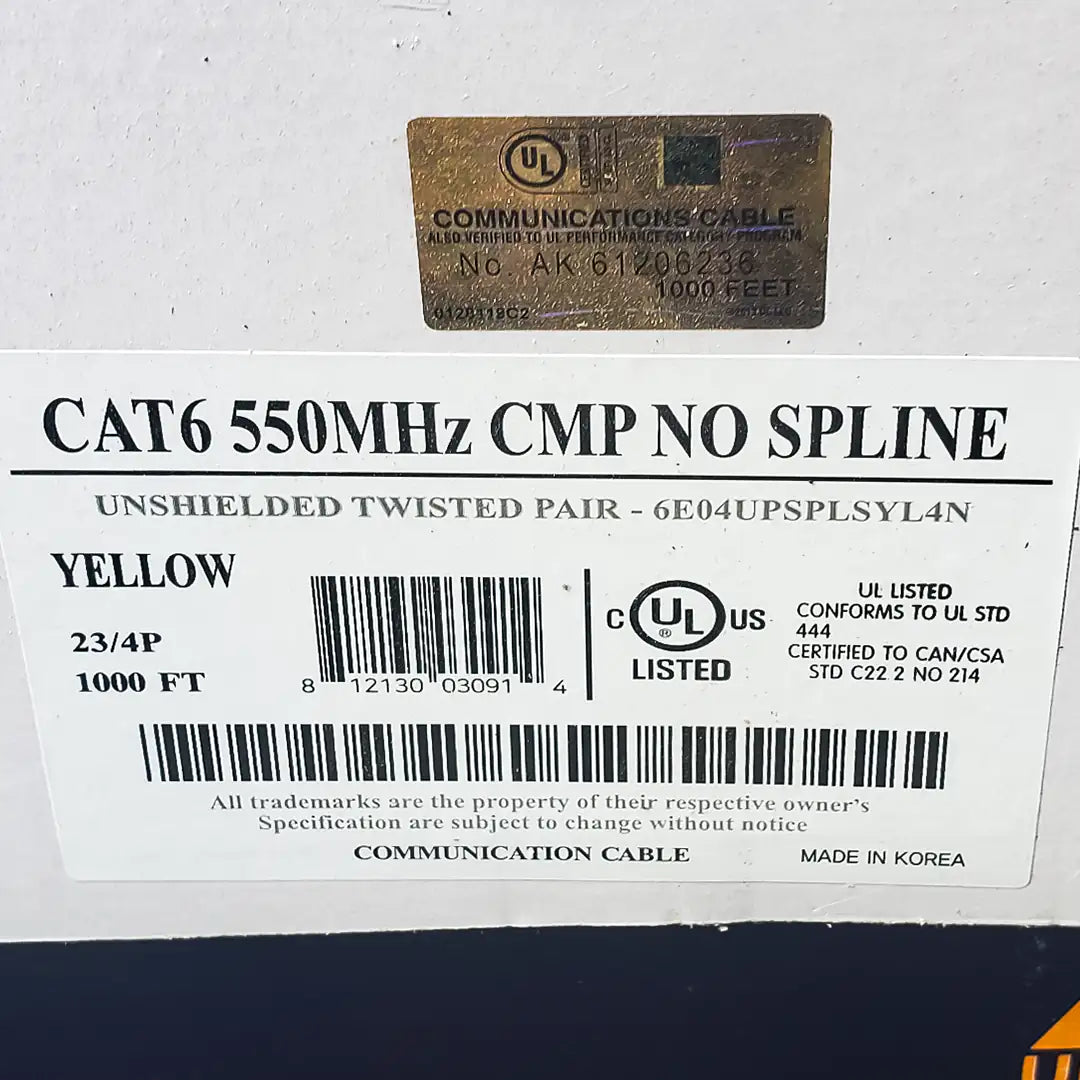

• Part Number: 6E04UPSPLSYL4N

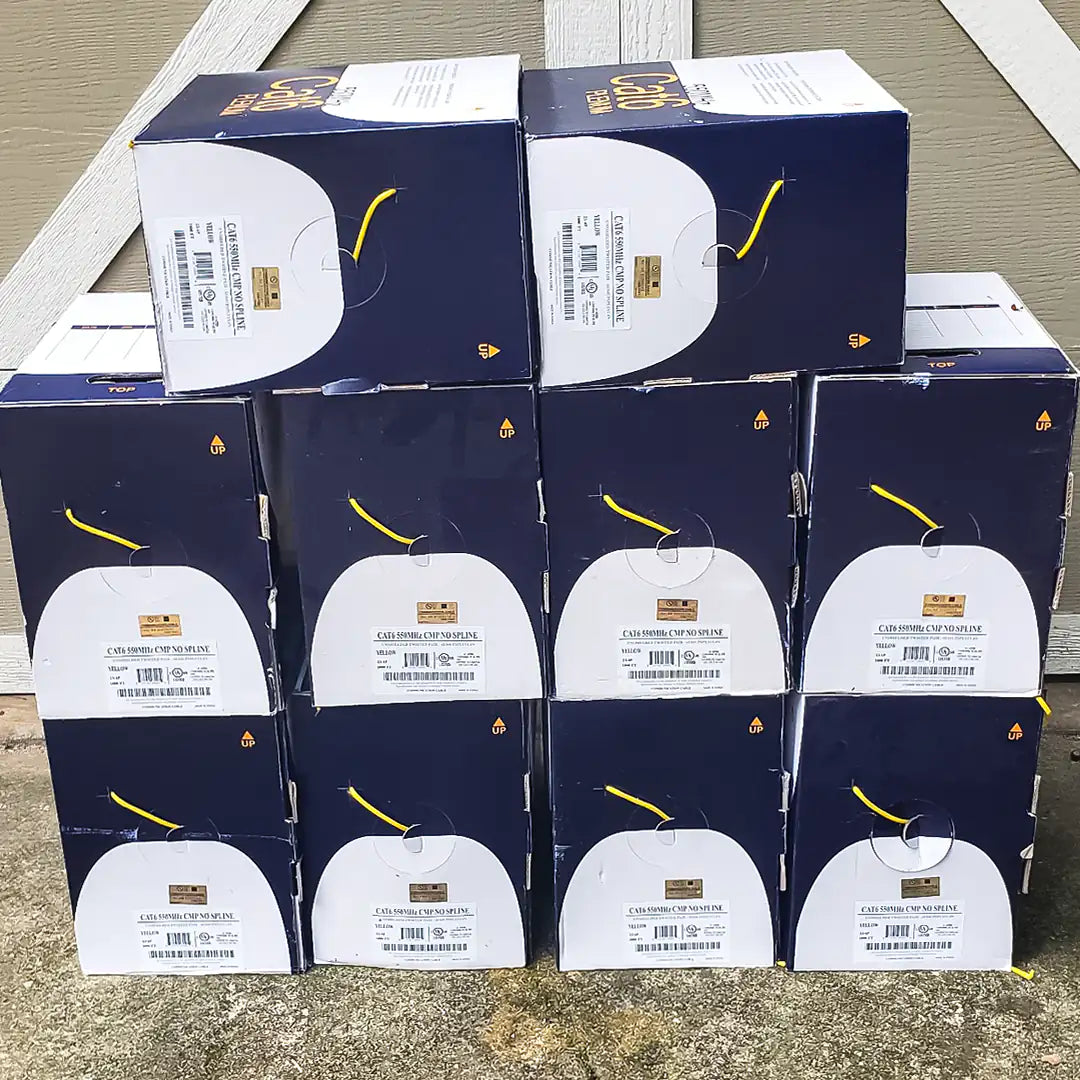

• Packaging: 1000FT / Reelex II box

Electrical Performance

• DC Resistance: 9.38 Ω / 100m Max. @ 20°C
• Resistance Unbalanced: 5% Max. @ 20°C
• Mutual Capacitance: 5.6 nF / 100m Max. @ 20°C
• Delay Skew: 45 nS / 100m Max. @ 20°C
• Nominal Velocity of Propagation: 69%
• Attenuation: 19.0 dB/100m Max. @ 100MHz
• NEXT: 47.3 dB Min. @ 100MHz
• PS-NEXT: 45.3 dB Min. @ 100MHz
• Return Loss: 22.5 dB Min. @ 100MHz

Features and Benefits

• Enhanced Bandwidth: Supports data rates up to 550MHz, future-proofing your network infrastructure
• Plenum-Rated Construction: Meets strict fire safety codes for installation in air handling spaces
• No-Spline Design: Easier termination and installation while maintaining signal integrity
• Solid Copper Conductors: Ensures reliable electrical performance and durability
• Color-Coded Pairs: Simplifies installation and troubleshooting
• Ripcord Included: Facilitates jacket stripping for faster termination

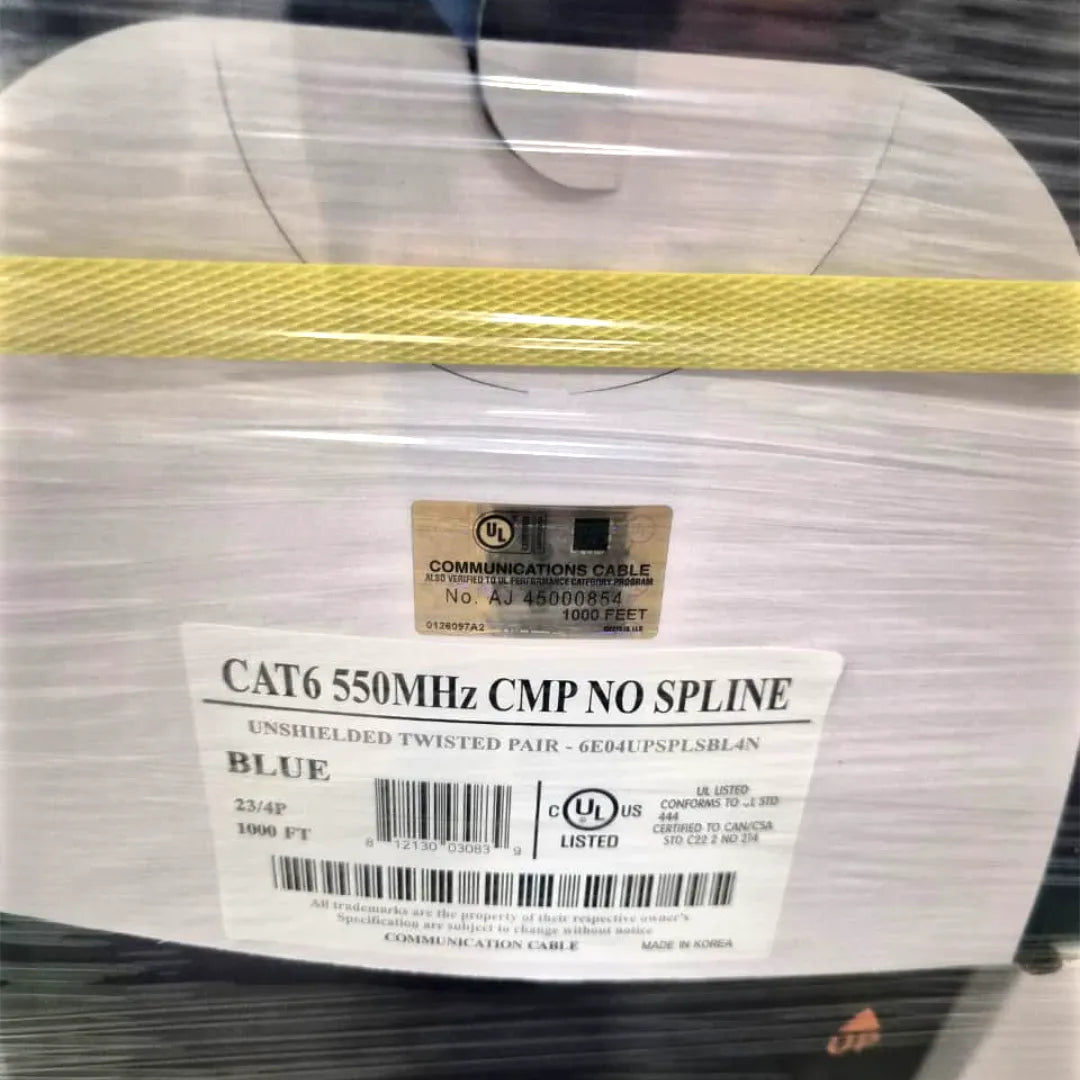

• Multiple Jacket Colors: Available in Black, Blue, Green, Grey, Orange, Red, Yellow, and White
• Verified Performance: Tested to exceed TIA-568-C.2 standards for Category 6 cabling

Applications

• Commercial building network infrastructure
• Data centers requiring plenum-rated cabling
• High-speed LAN backbones
• Gigabit Ethernet installations
• Voice, data, and video distribution systems
• Building automation systems
• Security and access control networks
• Educational and healthcare facilities
• Government and institutional buildings

Construction Details

• Conductor Material: Solid bare copper
• Insulation Material: FEP (Fluorinated Ethylene Propylene)
• Insulation Diameter: 0.037 in
• Insulation Thickness: 0.0088 in
• Jacket Material: Flame Retardant PVC
• Jacket Thickness: 0.023 in
• Overall Diameter: 0.205 in
• Weight: 26 lbs per 1000ft
• Color-Coding: Standard TIA-568 pair colors (White/Blue, White/Orange, White/Green, White/Brown)

Environmental Specifications

• Installation Temperature Range: 0°C to +75°C
• Operating Temperature Range: -20°C to +75°C
• Tensile Strength: ≥ 13.8 MPa
• Elongation: ≥ 100% before aging, ≥ 50% after aging

This premium CAT6 cable combines exceptional electrical performance with plenum-rated safety features, making it the ideal choice for commercial installations where both network reliability and building code compliance are essential. The no-spline design simplifies installation while maintaining the superior crosstalk performance needed for today's demanding network applications.
