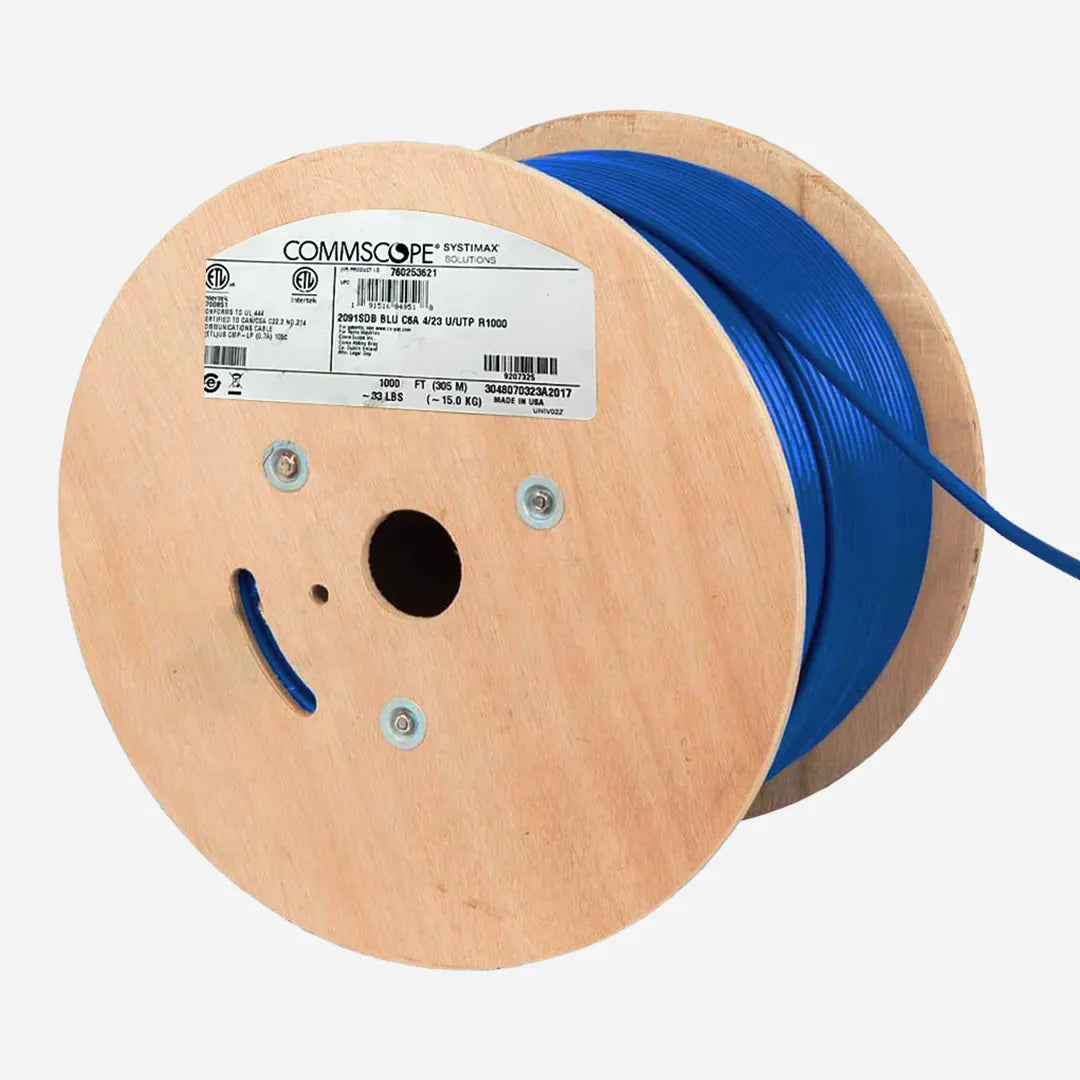

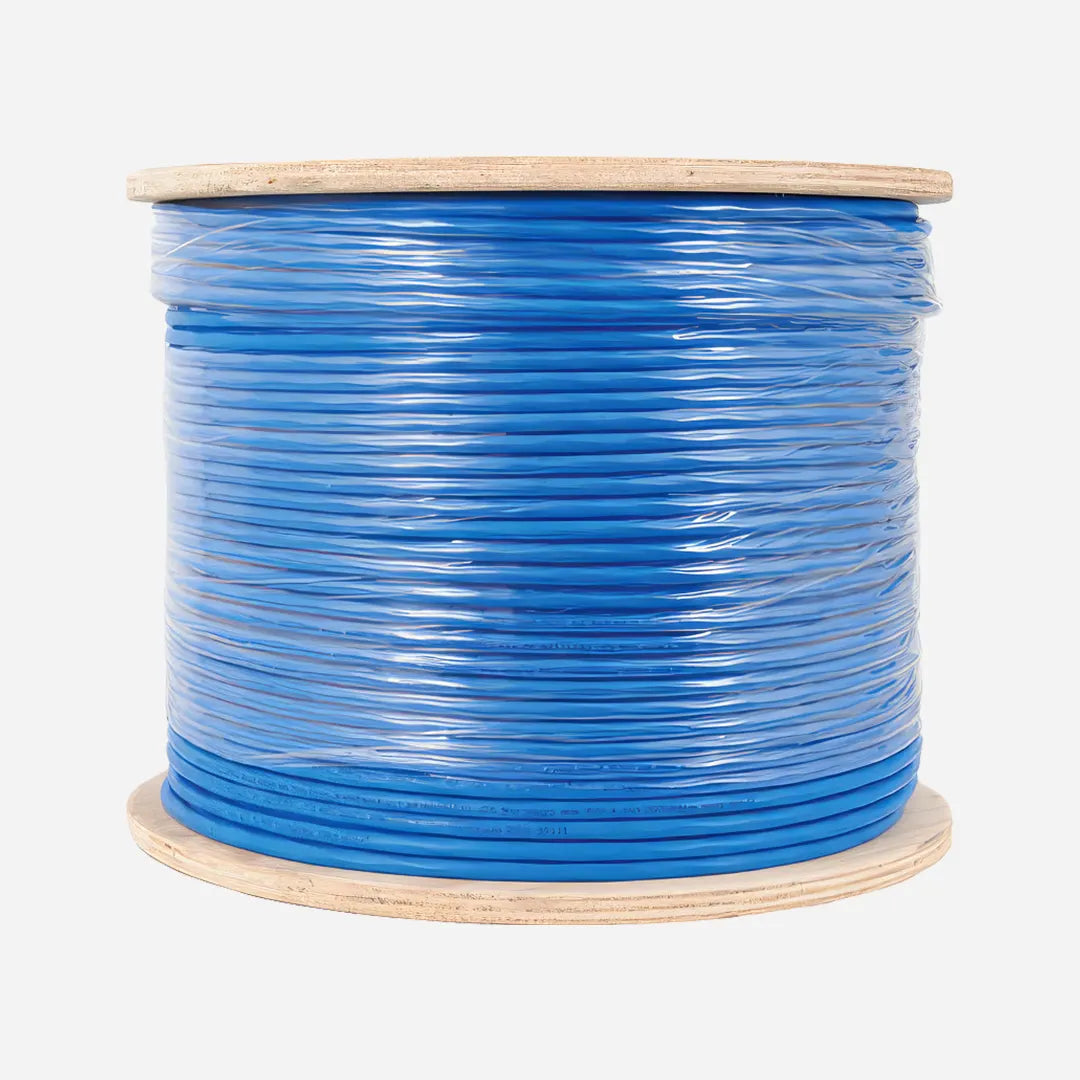

CommScope 2091SDB Cat6A Plenum Solid Copper UTP 23AWG 1000ft Blue Ethernet Cable

The CommScope 2091SDB is a high-performance Category 6A U/UTP (unshielded twisted pair) Ethernet cable, designed for superior data transmission in demanding network environments. Part of the SYSTIMAX GigaSPEED X10D family, this plenum-rated cable exceeds ANSI/TIA-568.2-D standards, ensuring reliable 10 Gigabit Ethernet performance up to 500 MHz. With its advanced design and premium materials, the 2091SDB is ideal for high-speed data centers, enterprise networks, and mission-critical applications requiring maximum bandwidth and minimal interference.

Product Specifications:

- Cable Type: Category 6A U/UTP (Unshielded)
- Conductor: 23 AWG solid bare copper
- Pairs: 4
- Nominal Diameter: 6.325 mm (0.249 in)
- Insulation: FEP (Fluorinated Ethylene Propylene)
- Separator: FEP Isolator
- Maximum Pull Tension: 25 lbs (11.34 kg)
- Nominal Velocity of Propagation (NVP): 70%
- Maximum Operating Frequency: 500 MHz
- DC Resistance: 8 ohms/100 m maximum
- Operating Temperature: -20°C to +75°C (-4°F to +167°F)
- Flame Test Rating: CMP/FT6 (Plenum)

Features and Uses:

1. High-Speed Performance: Supports 10 Gigabit Ethernet up to 100 meters, ideal for data-intensive applications.

2. Plenum-Rated: CMP/FT6 rated for use in air handling spaces, ensuring fire safety compliance in building installations.

3. Advanced Isolator Technology: Minimizes alien crosstalk for improved signal integrity in high-density cable installations.

4. PoE Compatibility: Fully compliant with IEEE 802.3bt (Type 4) for safe and efficient Power over Ethernet delivery.

5. Durability: Robust construction withstands installation stress and environmental factors for long-term reliability.

6. Versatile Applications: Suitable for data centers, enterprise networks, healthcare facilities, educational institutions, and other high-performance environments.

7. Easy Installation: A smooth jacket and optimized diameter facilitate pulling and termination in tight spaces.

8. Future-Proof: Exceeds current Category 6A standards, providing headroom for evolving network demands.

9. Temperature Tolerance: A wide operating temperature range accommodates various installation environments.

CommScope 2091SDB Cat6A Plenum Cable perfectly balances performance, safety, and reliability for modern network installations requiring high-speed data transmission and future scalability.
