Description

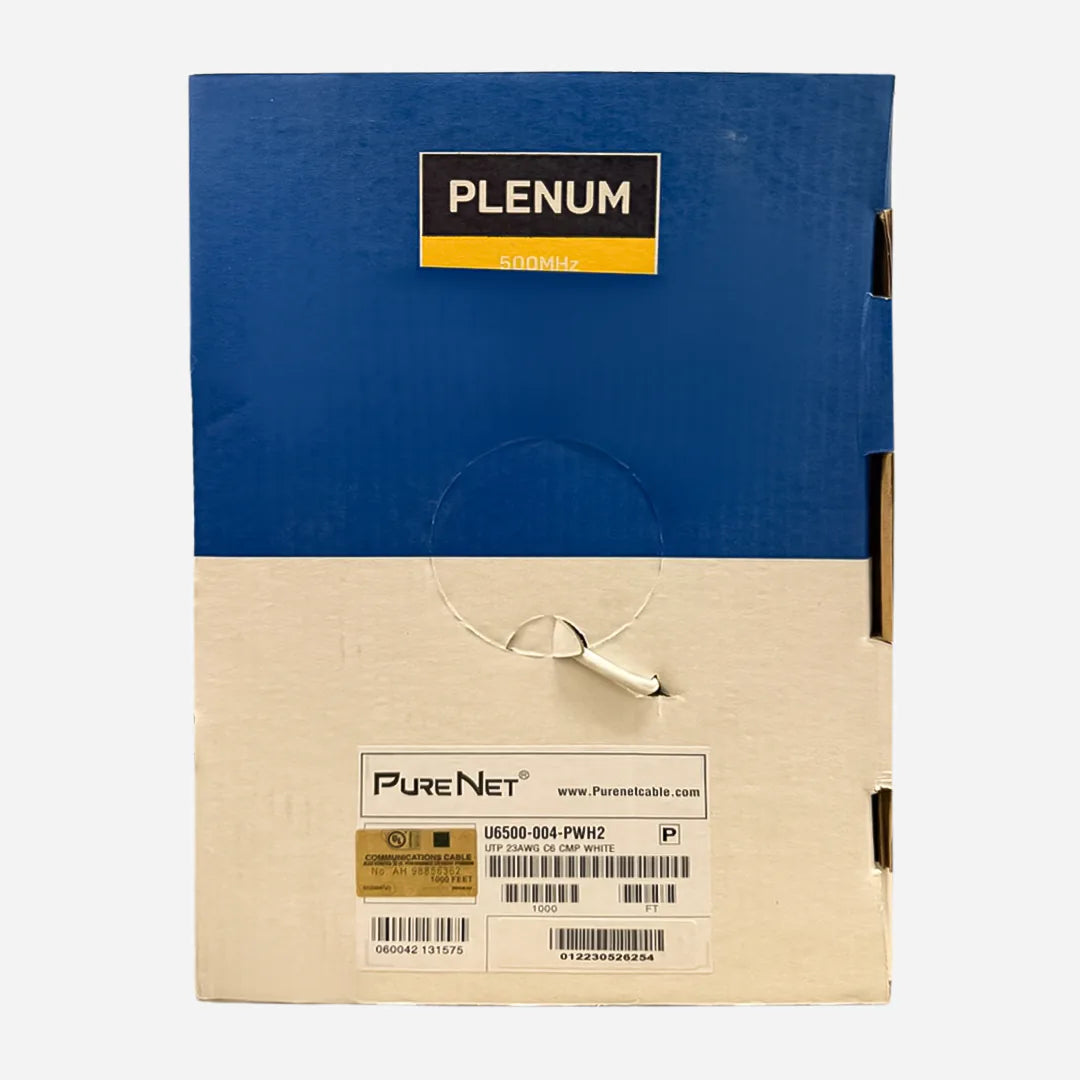

The PureNet U6500 Cat6 Plenum 23AWG Solid Copper 500MHz Cable is a high-performance, plenum-rated cable designed to meet the most demanding networking standards. It has HDEP/FEP insulation making it better for fire safety compliance. Its filler-less design simplifies installation, making it an ideal choice for horizontal distribution and backbone cabling. The cable is capable of handling full broadband and baseband video signals, ensuring a reliable connection for a variety of multimedia applications. With a slim outer diameter, the PureNet U6500 series offers a practical solution for complex network installations where space and flexibility are critical.
Application
The PureNet Cat6 Plenum Cable is ideal for horizontal distribution and backbone cabling. Its versatility allows it to handle various applications, including:
- 155Mbps ATM and 100Mbps TP-PMD
- 10/100/1000BASE-T (IEEE 802.3) Ethernet
- 10GBASE-T (up to a maximum of 55 meters)
- ISDN and ADSL
- ATM LAN 1.2G
- PoE and PoE+ (IEEE 802.3af and IEEE 802.3at)
Certifications
The PureNet Cat6 Cable meets or exceeds TIA-568-C.2 Category 6 requirements. It is UL-listed and has a 0.6A-LP rating for CMP (plenum) installations. Additionally, it complies with UL Code 444 and the National Electrical Code TIA-568-C.2 fire and safety standards. It is a RoHS-compliant cable.
Technical Details and Performance Characteristics
- American Wire Gauge (AWG): 23AWG
- Cable Listing: CMP (Plenum)
- Device Supported: Network Device
- Jacket Type: Plenum
- Material: Pure Solid Copper Conductor
- Number of Conductors: 8
- Number of Pairs: 4
- Shielding: Unshielded (U/UTP)
- Cable Length: 1000 feet (304.8 meters)
- Maximum Bandwidth: 500MHz
- Near-End Cross Talk (NEXT): Meets or exceeds TIA-568-C.2 standards
- Insertion Loss (Attenuation): Typical values provided for various frequencies
Additional Info & Specs
| Color | White |
|---|---|
| Product Type | Ethernet networking cable |
| Condition | New |
| Brand | PureNet |
| Package | Easy-Pull Reelex |
| Category | 6 |
| Spaces | Plenum |
| Gauge | 23 AWG |
| Jacket | Plenum-Rated |
| Insulation Material | HDEP/FEP |
| Frequency | 500MHz |
| No. of Pairs | 4 Twisted |
| Shielding | Unshielded U/UTP |
| Conductor | Solid |
| Conductor Material | Bare Copper |
| Certification Standards | UL Certified, ETL Certified, RoHS Compliant |
